DOT COMPUTERS

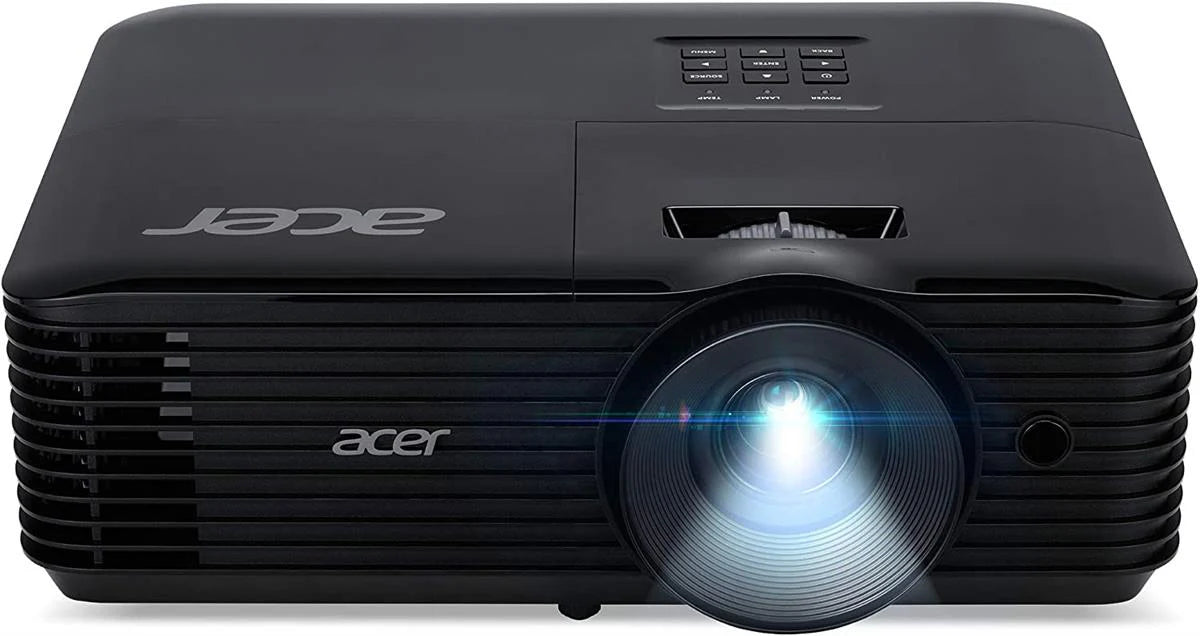

ACER 1326 H

ACER 1326 H

Rs.105,000.00 PKR
Rs.105,000.00 PKR
Sale Sold out
Shipping calculated at checkout.

ACER 1326 H

ACER 1326 H v




Native Resolution

  • 1280 x 800





Maximum Resolution

  • 1920 x 1200





Standard Mode Brightness

  • 4000 lm





Low Mode Brightness

  • 3200 lm





Compatible Aspect Ratio

  • 4:3
  • 16:9





Native Aspect Ratio

  • 16:10





Contrast Ratio

  • 20,000:1





Throw Ratio

  • 1.54 to 1.72 (1524 mm@2000 mm)





Digital Zoom

  • 2x





Zoom Ratio

  • 1:1.1





Vertical Keystone Correction

  • -40°/+40°





Maximum Vertical Sync

  • 120 Hz





Minimum Vertical Sync

  • 24 Hz





Maximum Horizontal Sync

  • 100 kHz





Minimum Horizontal Sync

  • 15 kHz





Colour Supported

  • 1.07 Billion Colors (30-bit)





Uniformity

  • 80%





Graphic Mode

  • WXGA





Projection Lens

Lens Type

  • Manual Zoom
  • Manual Focus

Minimum Lens Aperture

  • f/2.41

Maximum Lens Aperture

  • f/2.53

Minimum Focal Length

  • 21.85 mm

Maximum Focal Length

  • 24 mm

Minimum Diagonal Image Size

  • 685.80 mm

Maximum Diagonal Image Size

  • 7.62 m (300")

Minimum Projection Distance

  • 1 m

Maximum Projection Distance

  • 10 m

Optical Zoom

  • 1.1x





Lamp

Lamp Type

  • OSRAM

Number of Lamps

  • 1

Lamp Power

  • 220 W

Normal Mode Lamp Life

  • 6000 Hour

Economy Mode Lamp Life

  • 7000 Hour

ExtremeEco Mode Lamp Life

  • 10000 Hour





Interfaces/Ports

HDMI

  • Yes

Number of USB Ports

  • 1

USB

  • Yes

USB Connector Type

  • 1 x Type-A

Number of Composite Video Ports

  • 1

Composite Video

  • Yes

Number of VGA Inputs

  • 1

VGA In

  • Yes

Number of VGA Outputs

  • 1

VGA Out

  • Yes

Number Of Audio Inputs

  • 1

Number Of Audio Outputs

  • 1

Audio Line In

  • Yes

Audio Line Out

  • Yes

Total Number of HDMI Ports

  • 1

VGA In

  • x1, D-sub

VGA Out

  • x1, D-sub

Video

  • x1, RCA

Audio In

  • x1, 3.5mm mini jack

Audio Out

  • x1, 3.5mm mini jack

S/PDIF

Speaker

  • x1, 3 W Speaker
  • x1, 3 W Speaker





Technical Information



Projection System

  • DLP

Projection Method

  • Front
  • Rear
  • Ceiling
  • Rear Ceiling

Video Compatibility

  • NTSC
  • PAL
  • SECAM
  • HDTV
  • EDTV
  • SDTV

Computer Compatibility

  • Windows PC
  • Mac PC

Audio

Number of Speakers

  • 1

Speaker Output Power

  • 3 W

Speaker Output Mode

  • Mono

Display/Image

Projection System

  • DLP™

Light Source

  • 220 W OSRAM

Light Source Life

  • 6000 hours (Standard), 7000 hours (ECO)

Native Resolution

  • 1280 x 800

Maximum Resolution

  • 1920 x 1200

Brightness

  • 4000 ANSI Lumens (Standard), 3200 lm (ECO)

Aspect Ratio

  • 16:10 (Native), 4:3 (Supported), 16:9 (Supported)

Contrast Ratio

  • 20,000:1

Image Size

  • 27" (68.6 cm) ~ 7.62 m (300")

Throw Ratio

  • 1.54 to 1.72 (1524 mm@2000 mm)

Zoom Ratio

  • 1.1x

Digital Zoom

  • 2x

Lens

  • F = f/2.41~f/2.53, f = 21.85 mm~24 mm, Manual Zoom, Manual Focus

Projection Mode

  • Front, Rear, Ceiling, Rear Ceiling

Display Colour

  • 1.07 Billion Colors (30-bit)
  • 1.07 Billion Colors (30-bit)

Vertical Sync Rate

  • 24 ~ 120 Hz

Horizontal Sync Rate

  • 15 to 100 kHz

Power Description

Power Supply

  • 100 V AC ~ 240 V AC

Input Voltage

  • 120 V AC
  • 230 V AC

Operating Power Consumption

  • 275 W

Physical Characteristics

Fan Noise

  • 32 dB Approximate Standard Mode
  • 24 dB Approximate Economy Mode

Operating Temperature

  • 0°C to 40°C

Operating Humidity

  • 80%

Weight (Approximate)

  • 2.80 kg

Form Factor

  • Ceiling Mountable

Height

  • 113.7 mm

Width

  • 313 mm

Depth

  • 240 mm

Miscellaneous

Optional Accessories

  • Carrying Case (MC.JPV11.005)
  • Lamp (MC.JR711.008)

Standard Accessories

  • AC Power Cord
  • Battery for remote control
  • Lens Cap
  • Quick Start Guide
  • Remote Control
  • Security Card
  • VGA Cable

ACER 1326 H

View full details
