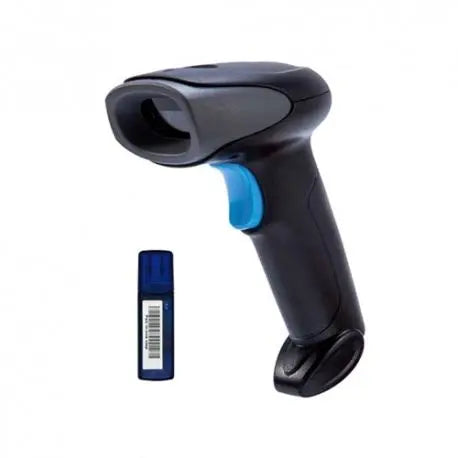

Blackcopper Bc-F2 wireless Barcode Scanner

Blackcopper Bc-F2 wireless Barcode Scanner

Blackcopper Bc-F2 wireless Barcode Scanner Features:

• 1D scan
• Wireless
• Charging cable
• Dongle

C-F2 1D CCD wireless barcode scanner

◆ wireless transmission distance

◆ large storage capacity

◆ excellent scanning performance

◆ warehouse management applications

◆ Using 2.4g/ wireless communication technology

Highlights

♦ Consistent, fast and accurate
BC-F2 CCD barcode scanner can fast and accurately read dirty barcode, damaged barcode plicated barcode, applies to different applications
♦ Support barcodes on various materials
Black Copper CCD barcode scanner ( Linear Image scanner), not only can read the 1D barcodes on printed paper, but 1D barcodes on mobile phone and computer displays, silver paper with reflective material, and barcode surface with water and ice.
♦ Using RF433 wireless transmission technology
Long distance wireless transmission: Black Copper BC-F2 barcode scanner is able to reach 100 feet wireless transmission in an open area, has big memory of 100,000pcs 13 bytes barcodes, and real time mode, inventory mode, and cache mode to meet the needs of different applications.
♦ Superior decoding performance
Black Copper BC-F2 barcode scanner can reach 350+50 scans per second, fast and accurate,  can help to improve your working efficiency.
♦ Perfect process design and ultimate experience
Black Copper BC-F2 uses imported ABS material, high quality rubber is a good buffer against impact. Nice design makes it different and popular. It applies to cashier for mobile payment and Logistics &Express.
♦ Long life span
Shockproof and Anti-broken
it can use normally drop from 1.2 meter to the cement floor.
Famous brand C&k button
Black Copper BC-F2 barcode scanner uses world famous brand C&k trigger button, even after 1500,000 times trigger, it still works normally.

Specifications

PHYSICAL CHARACTERISTICS

Communications
RF433
Communication frequency
433-440MHz
Transmission range
≤100FT（In empty area 100ft ）
Data rate
10Kbps
Memory
100,000@13Byte barcode
Battery capacity
1500mAh (Lithium battery)
Dimensions
97mm×67mm×165mm（L x W x H）
Weight
172.3g（6.08oz）
Charging time
4.5H
The working time of the full charge
6h (continuous reading situation)
12h (Manual reading situation)
More than 15 days (Stand-by time)
Communication mode
Read-time mode/ Inventory mode/Cache mode


ENVIRONMENTAL

Ambient Light
fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max
Operating Temperature
-20°C to 65°C / -4°F to 149°F
Storage Temperature
-30° to 70°C /-22° to 158°F(storage)
Humidity
5%-90%
Shock Drop Test
1.5m drop onto concrete surface


ELECTRICAL

Interface
USB HID KEYBOARD/USB VCP
Voltage Requirement
5VDC±10%
Current Consumption
Max:138mA


OPTICAL CHARACTERISTICS

Photo Sensor
CCD linear sensor
Sensor Resolution
2500 pix
Light Source
632nm Red LED


SCANNING PERFORMANCE

Scan Rate
350+50(scans/second)
Decode Angle
Pitch angle: ±30°
Skew angle: ±70°
Tilt angle: ±45°
Print Contrast
>25%UPC/EAN 13（13mil）
Min.Resolution
0.101mm/4mil(PCS 0.9)
Curvature
R≥15 mm (EAN8), R≥20 mm (EAN13) (resolution=0.26mm, PCS=0.9)
Language
Multiple languages
Error rate
1/500W
