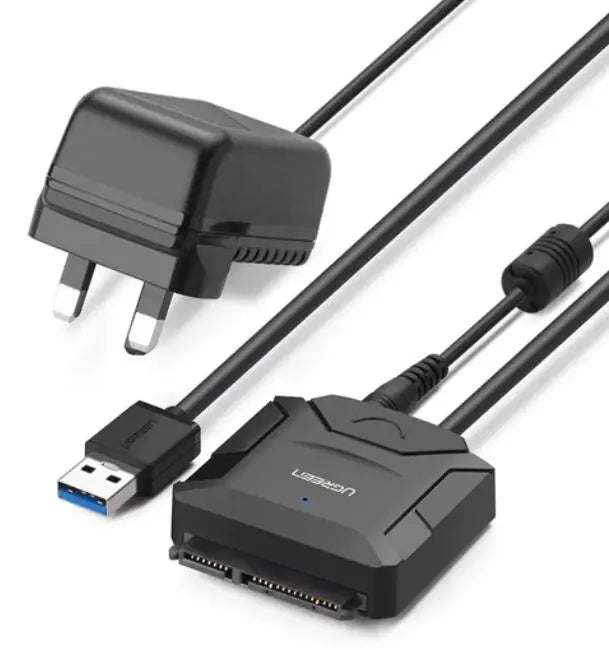

UGREEN 20611 SATA to USB 3.0 Adapter Cable

Faster Speed With UASP

Features latest SATA III 6Gbps internal and USB 3.0 5Gbps external and delivers blazing data transmission rate up to 5Gbps. Enhanced with accelerated transmission protocols-UASP (USB Attached SCSI Protocol) and TRIM, the SATA 3 USB Adapter enables you to take the full advantage of SSD drives and realize 70% faster than traditional HDD drives.

Simple to Use

Plug & play, driver-free for all devices.
Support hot-swapping. No need to swith off your laptop while exchanging the connected hard disks.
Power supply required for 3.5 inch hard drive disk.

Simple to Use

Plug & play, driver-free for all devices. USB-bus powered, no need for extra power supply for 2.5″ SATA HDD/SSD.

Universal Compatibility(Partial List)

USB 3.0 Male Connection: Laptops running Windows 10/8.1/8/7/XP/Vista, Mac OS, Linux or Chrome OS; Game consoles like PS4, PS4 Pro, PS3, Xbox one, Xbox 360; Raspberry Pi; TV; Router, etc.

SATA 15+7 Pin Female Connection: 2.5″ SATA III / II / I HDD and SSD, compatible with WD Blue PC Hard Drive, WD Black 3.5″, WD Green SATA 3, Seagate Barracuda 3.5/2.5, Seagate IronWolf, Toshiba P300 3.5″, Seagate FireCuda, Samsung 860 EVO / 850 EVO SATA III, Crucial BX500, Kingston SATA A400, PNY CS900, TCSUNBOW / Silicon Power / DREVO / YUCUN internal Solid State Drives,etc.

Application Step

For using it:
Plug the hard drive into the adapter→ Connect the adapter with power→ Connect it to your computer via the USB interface

For Removing it:
Click the disk icon, choose “Eject Hard Drive” to remove the hardware safely→ Disconnect the 12V 2A power adapter→ Disconnect the usb port.

Note

1. No extra power required for 2.5″ HDD/SDD.
2. For 3.5″ HDD/SDD, Please connect the 12V/2A power adapter in the package for stable transmission.
3. For UASP, only when your devices, hard drives and system are UASP supported, then the speed can be 20% faster.
4. Do NOT support BLU-RAY DVD, CD-ROM, DVD-ROM, CD-RW, DVD+RW Combo devices.

Package Contents

1 x USB 3.0 to SATA Hard Drive Converter Cable
1 x 12V/2A Power Adapter
